CQRLOG for LINUX by OK2CQR & OK1RR

Wsjt remote mode

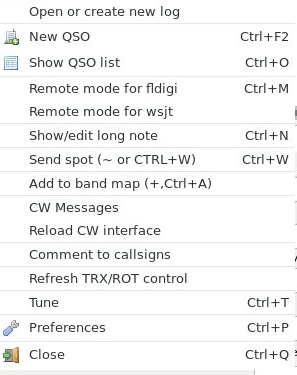

From New QSO / File select 'Remote mode for wsjt'

Remote mode for WSJT-X-communication is made via UDP dtatgrams that and is supported from WSJT-X 1.5.0 program upwards.
Cqrlog supports WSJT-X UDP remote mode since version 1.9.1

When remote mode is selected it shows last received WSJT-X packet type number after text “Wsjt-x remote” text. Also color of text changes while receiving packets.
These will show you that UDP link is alive between these programs.

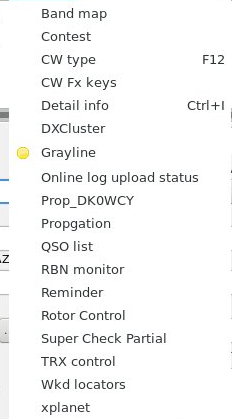

New QSO / Window list

“ Wsjtx monitor “ is visible only if WSJT-X remote mode is selected. Others can be found from there all the time.

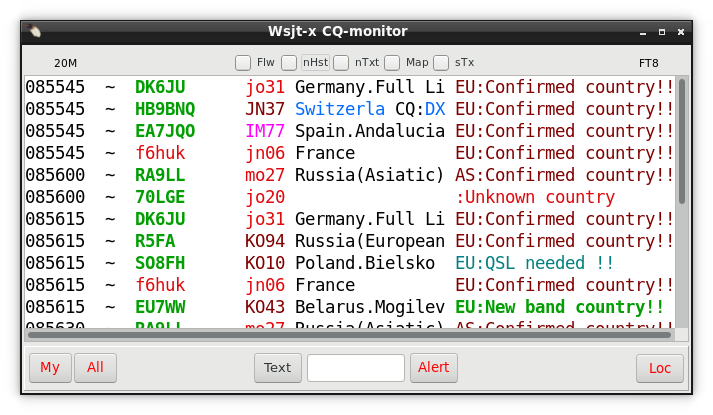

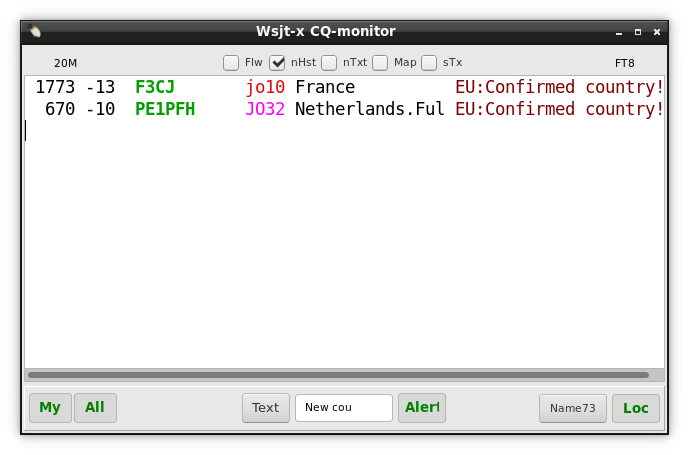

Wsjt-x CQ-monitor

Wsjt-x CQ-monitor form opens when you select ”Remote mode for wsjtx” from ”File” of NewQSO window.

You can close this window and reopen it later via NewQSO/Window/Wsjt-x monitor that is visible only when remote mode is selected. While it is closed it will not update it’s contents.
Only remote logging and call qrz/hamqth seek are used then.
If UPD port opening for remote fails "NewQSO/Comment to qso" will have text “Could not bind socket for wsjtx!"

Top line will show band and mode that is in use, Checking "noHst” (no history) will clean monitor on every decoded RX-period.
Timestamp and mode letter at the start of line are also replaced by DeltaFrequency (waterfall position of station) and Snr dB value then, as no history is collected and so time stamp has no meaning.
If there are no CQ lines during period then old monitor lines will turn to silver gray indicating that right period of possible answer is passed. This happens ONLY if "noHst” is checked. If not, colors stay as they are.
CQ-lines turning to silver gray does not disable double click answering property. It is just informative color change.
If not checked form will show also older CQs (scrolling) to see what you missed while having a coffee break :). Only 20 lines, how ever.

Checking "sTx” (Stop TX) will fix missing Wsjt-x property: If you answer to someone's CQ at same frequency Wsjt-x will stop your TX if CQ-caller answers to someone else than you. How ever Wsjt-x developing team has decided that if you anśwer to CQ caller on other frequency (split) your TX remains on even if the answer was directed to someone else. To reduce band QRM caused by you, you may check sTx to stop your TX if answer was not for you.
In some cases your TX may be shut down after you have first tried to answer someones CQ but got no answer and CQ caller has continued calling CQ. Then if you start calling your CQ your TX is shut down when the CQ caller that you first tried to catch gets a qso. That is because CQ-monitor has no indication that you have given up answering to that CQ caller and started your own CQ. Unless you do not clear wsjt-x's Std Msgs with F4 (on wsjt-x main screen) before starting your CQ.

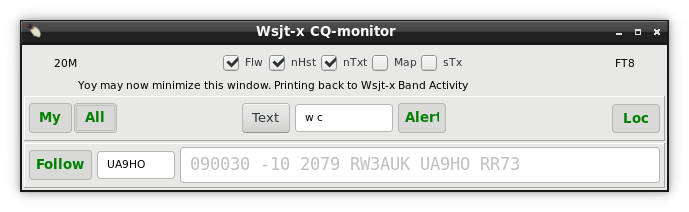

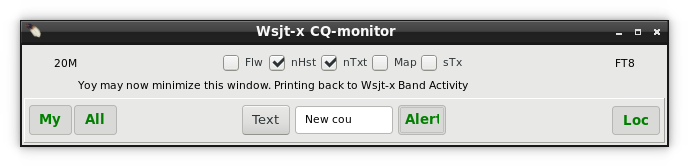

If you do not want any information texts, just alerts, you can check nTxt to prevent richmemo text updates and minimize window size horizontal or drop it completely down with (_) while alerts and follow are still working.

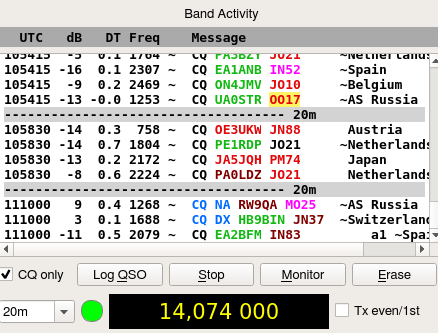

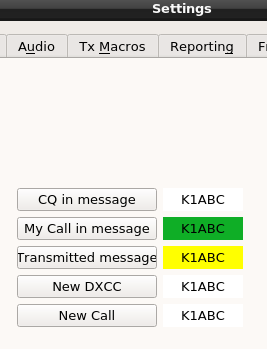

If you have Wsjt-x devel version 1.9.0-rc3 r8592 (or higher) coloring is sent back to Wsjt-x with same choosed colours as CQ-monitor uses. How ever there are some limitations compared to CQ-monitor:

  • color back can not change lower case letters of Band Activity line in case call or locator is worked. Just font color is changed
  • color back can not print locator with 2 colors in case main grid is worked, but subgrid(numerical part) is not. In that case locator will have maingrid color and yellow background.
  • color back will paint both "CQ" and cq-direction with "CQ ext" color if CQ is not directed to you.

  • With older versions of wsjt-x this causes unkonwn command error and then nTxt should not be checked until you get newer version of Wsjt-x.

    If you are able to use color back feature you may want to change some Wsjt-x color settings and maybe check "CQ only" checbox at Main window. Selecting also font to some of "mono"+ "bold" ones from "Configuration/General/Decoded Text Font" could make a better view.

    In current Wsjt-x devel version 1.9.0-rc3 r8592 selecting CQ only will disable Generating of Std messages by double click either followed message line or Wsjt-x map's non-cq lines.
    This does not happen if CQ only is uncheked. Unchecking it after not working double click does not help if Band Activiy window does not contain that line from which Wsjt map or follow line was created.
    That is because Wsjt-x must found equal line from Band activity and UDP command that produces Std General messages creation.
    This may change in future devel versions or in official release of 1.9.0, but at the moment you should be aware of that.

    Hint: If you have had CQ only checked and you want to load Std message from just appeared line from Wsjt map or follow line uncheck CQ only immediately during time that entry is not grayed (ongoing period). Wsjtx will produce again last periods decode (wsjt map will show it double) and after that you can have effect for double click.

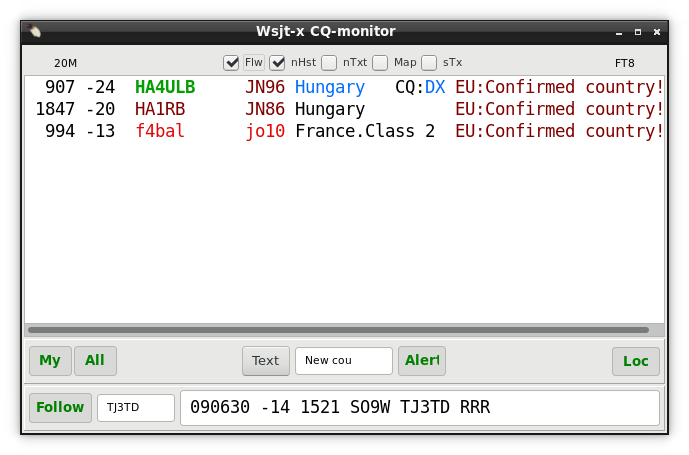

    Checking “flw” new part of monitor opens. This will make easier to follow a DX who does not stay on same frequency, but jumps around answering to callers.
    Type in a callsing. The callsign is checked to be written in upcase letters and spaces are trimmed away. Pressing RETURN at the end of typing turns Follow button ON (green). You can also toggle Follow button ON and OFF by mouse clicks (turns green/red)
    When Follow turns ON then during next decoding periods follow line (at right side of follow call edit) shows decoded lines where that followed callsign is the originating (2nd) callsign and the line is not CQ or not to YOUR Call(destination). That box uses same font and size as CQ-monitor.
    You can also paint any call from WSJT-X main window or CQ-monitor, drag it over Follow callsign field, and drop it there. Follow callsign field can have previous call (it is erased) or empty. Dropping also activates Follow button ON (turns green).

    Line contains: decoding_period_time | snr | delta_frequency | the_message.
    Alerts are not connected to this line. Follow and flw states and callsing are saved over program restart.

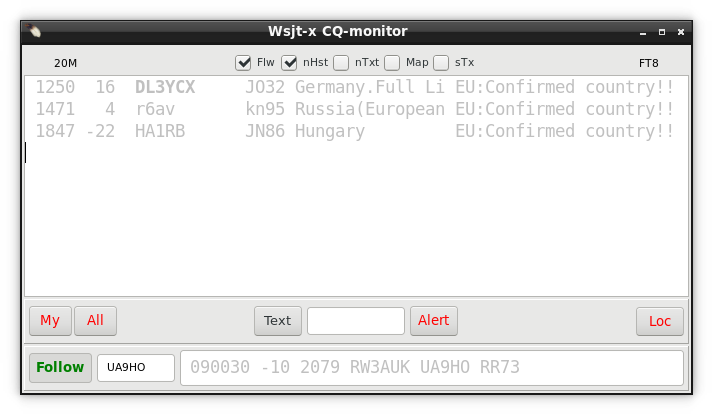

    Line color turns silver gray from default color (black) when corresponding response period is over.
    This will make easier to follow a DX who does not stay same frequency and jumps around answering to callers.
    Double click on followed line loads Std messages to wsjt-x (but does not fire TX). This works with Wsjt-x 1.9.0-rc3 and up.

    CQ-monitor has known problem of color printing (richmemo unit) that causes CPU load to grow slowly during online hours. For so far solution for this has not been found.

    How ever you can drop CPU load by just setting NewQSO/File/remote mode for wsjt to OFF and then immediately back to ON. This releases previously used memory and CPU load returns to normal and is a very fast fix that can be done during a reciving period.

    CQ-monitor has now 30 lines (if “no history” unchecked). Automatic scrollbars are visible if needed.

    Line of CQ-monitor contains:

    If you want to see a bit more in country name you may try to create this script and run it from console. Remember to set execute bit (chmod +x) to script file to get it running. This script will fix some long country names and change comma-space combinations to dot (as CQ-monitor cuts contry name if it sees comma). That way you will see a bit more info in 15chr long country name of CQ-monitor.

    --------------cut here---------------------------------------------------------
    #/bin/sh
    cd ~/.config/cqrlog/ctyfiles

    # fix long names to these 3 files--------------------------------
    # /-----Existing name now------/new-name/ file to read > file to write
    # Do plain Germany
     sed s/"Federal Republic of Germany"/Germany/g Country.tab > /tmp/fixme.txt
     mv /tmp/fixme.txt Country.tab
     sed s/"Federal Republic of Germany"/Germany/g CallResolution.tbl > /tmp/fixme.txt
     mv /tmp/fixme.txt CallResolution.tbl
     sed s/"Federal Republic of Germany"/Germany/g  AreaOK1RR.tbl > /tmp/fixme.txt
     mv /tmp/fixme.txt AreaOK1RR.tbl

    #Next replacement round-----------------------------------------
    #Do plain name to all "Rebublic of"
     sed s/"Republic of "//g Country.tab > /tmp/fixme.txt
     mv /tmp/fixme.txt Country.tab
     sed s/"Republic of "//g CallResolution.tbl > /tmp/fixme.txt
     mv /tmp/fixme.txt CallResolution.tbl
     sed s/"Republic of "//g  AreaOK1RR.tbl > /tmp/fixme.txt
     mv /tmp/fixme.txt AreaOK1RR.tbl

    #Next replacement round-----------------------------------------
    #Do replacement ", " to "." Comma cuts name in CQ-monitor, replace with dot for more data
     sed s/", "/./g Country.tab > /tmp/fixme.txt
     mv /tmp/fixme.txt Country.tab
     sed s/", "/./g CallResolution.tbl > /tmp/fixme.txt
     mv /tmp/fixme.txt CallResolution.tbl
     sed s/", "/./g  AreaOK1RR.tbl > /tmp/fixme.txt
     mv /tmp/fixme.txt AreaOK1RR.tbl

    #Next replacement round-----------------------------------------
    #Do replace USA
     sed s/"USA - "/"US:"/g AreaOK1RR.tbl > /tmp/fixme.txt
     mv /tmp/fixme.txt AreaOK1RR.tbl


    #Next replacement round-----------------------------------------
    # add your own definitions same way using sed  under this line






    #--------------------------done---------------------------------
    #remind to reload fixed files to cqrlog-------------------------
     echo '------------------------------------------------------------'
     echo 'Run now:  Window->QSOlist->File->"Import DXCC data"'
     echo 'From dialog select: ".config/cqrlog/ctyfiles" folder open'
     echo 'Press "Open"'
     echo ''
     echo 'You need to run this script after every DXCC upgrade received'
     echo ''
     echo 'If you do not like the results delete files:'
     echo '  CallResolution.tbl'
     echo '  Country.tab'
     echo '  AreaOK1RR.tbl'
     echo '  cqrlog-cty.tar.gz'
     echo 'from ~/.config/cqrlog/ctyfiles/ directory, then'
     echo 'run CQRLOG again and confirm auto upgrade'
     echo '------------------------------------------------------------'

    #done
    --------------cut here---------------------------------------------------------

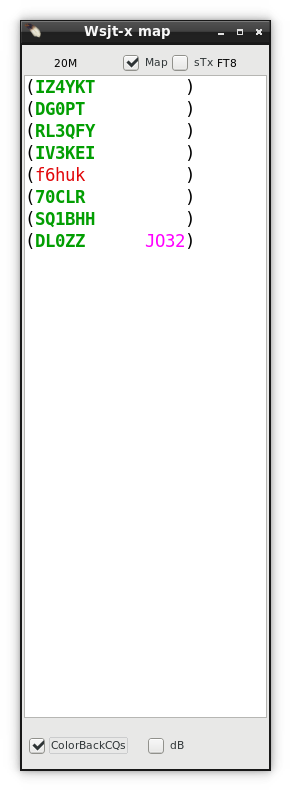

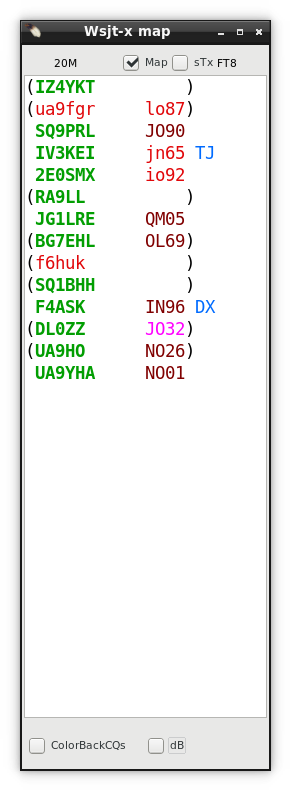

    CQ-monitor can be turned to "Band map"- type Wsjt-x map by checking "Map". It hides all other controls. How ever if alerts were on they stay on. Exception is that Text alert does not find continents and comments like "New country","QSL needed" etc.
    Map-mode shows all traffic on band. Colors of callsigns and locators are same than in CQ-monitor. If call is not in parentheses it is a CQ-call. Calls in parentheses have qso if there is no locator shown. If locator is shown they are answering to someones CQ.
    If station is calling directed CQ that is not directed to you (same as in CQ-monitor, but in short form) the direction is shown at the and of line.

    As also all other lines than CQs are compared against your log entries this mode will eat more of cpu cycles than CQ-monitor.
    Map-mode does not save history, it clears itself always at start of new decoding period if there is something new to show. Otherwise lines are turned gray as in CQ-monitor.

    You can initiate qso same way as in CQ-monitor by double click on line without parentheses. Double click on line with parentheses loads call to Std messages of Wsjt-x and sets frequency, but does not initiate TX.
    This is a new property of Wsjt-x 1.9.0-rc3 and up. With previous versions this does not make any action.

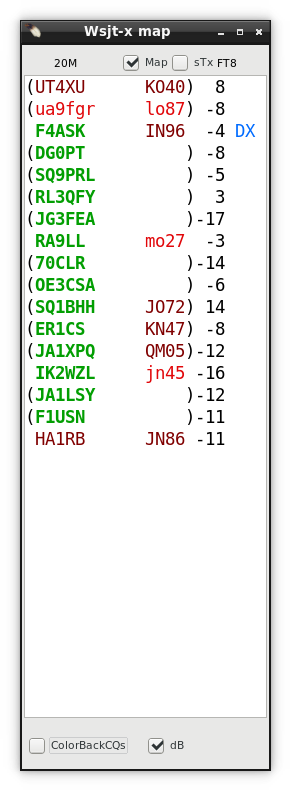

    dB selection shows station snr report, like it shows up in Band Activity of wsjt-x.
    ColorBackCQs selection work so that all CQs are printed (colored) back to Wsjt-x Band Activity window and rest of the traffic will appear to Wsjt-x band map.

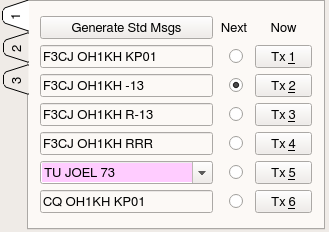

    Button Name73 becomes visible when at least one decoded UDP message from WSJT-X is received and Name field of NewQSO has content.
    Pressing this button will send a FreeTextMessage to WSJT-X containing "TU HISNAME 73" Where HISNAME is text from NewQSO/Name field. This will not start TX.
    FreeTextMessage length is limited to 13 characters. "Tu " and " 73" will take 6 of them. So name can be only 7 char long. If it is longer it is not sent to WSJT-X and button disappears after pressing to indicate that name is too long.
    Button disappears also on next decode when NewQSO/Name becomes empty. If you do not like to use generated FreeTextMessage you can double click WSJT-X's button TX5 to get back standard "CALL MYCALL 73" message.
    This button is made just for testing reply-UDP messages as new WSJT-X will use more of these kind of messages, like callsing coloring in Band activity window by external request.

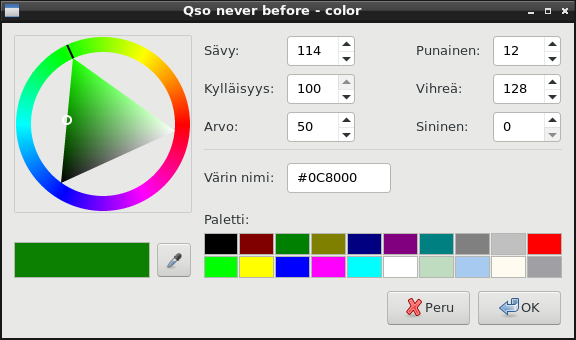

    Colors & fonts

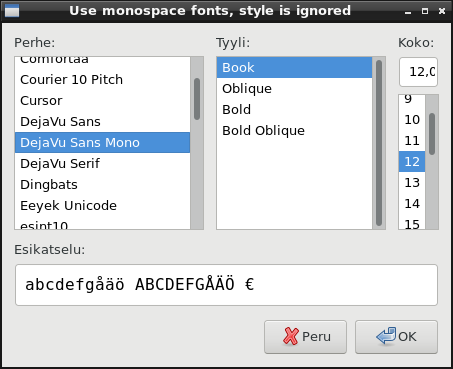

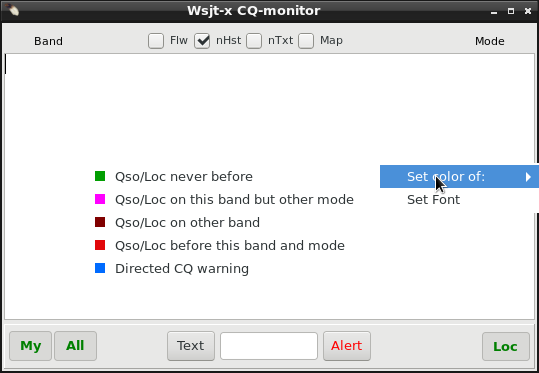

    CQ-monitor has a new design. Window is adjustable and font + size can be changed.
    Font style can not be changed as now “Qso never” (default Green) is printed also with bold while all other texts are in normal style.


    Colors, that user can now change, will tell if station is worked before on this band and mode, this band but not this mode, some other band/mode and never on any band/mode.

    Same color coding is applied also for locator grid.
    Full locator (means 4 first characters of locator) worked before on this band and mode, this band but not this mode, some other band/mode and never on any band/mode.
    If no hits found for full locator then main locator (2 first letters) are checked same way next . Worked before on this band and mode, this band but not this mode, some other band/mode and never on any band/mode.

    Calls and locators that are worked before on this band and mode are also printed in lowercase letters while all others are printed with UPPERCASE.


    NOTE: Using monospace fonts will keep monitor columns in order.

    Alerts

    At bottom there are 3 alerts to select. The priority of alerts is same as numbering here. Smaller number overrides previous having highest priority. Alert is executed only once per every decoding section.

    1. My Alert” will alert if someone answers your cq-call. It is useful if you are reading your mails, Facebook or what ever on another desktop while calling CQ with Wsjt-x :)
    2. All”will extend “MyAlert” so that all lines that start with your callsign give alerts. There are stations that answer to CQ directly with report, so this wakes you up also then. When using FT8 this might be little annoying but is easy to check off.
    3. Text [ ]Alert” will alert if typed text, case sensitive, fits into part of complete monitor line (text-in-text).
      Example: alert from new country by setting “w c” string to text alert. It fits in to the middle of “New country” string. Text can have spaces, but not at start or at end.
      Press button “Text” to change to call alerts.
      Call [ ]Alert” will alert if typed text, (converts to upcase when alert activated), fits callsign of monitor line. As option, one asterisk can be used at start or end to indicate starts-with or ends-with search. Several search strings can be inserted for call alert with comma separation.
      Press button “Call” to change to text alerts.

      Text you have typed is read only after you leave edit box. Then spaces from start and end are removed and in case of “call alert” text is changed uppercase.
      To activate alert press ”Alert” to turn it’s text green. (it also takes you away from edit box)


    4. Loc Alert” will alert when there is new main grid that you have not worked.

    To make alerts do something you have to add a script file ~/.config/cqrlog/voice_keyer/voice_alert.sh
    This script gets parameter $1 of “my”,”loc”,”text” or “call” depending of alert given.
    By using these parameters with your script you can play sound that you want, or do anything else you like to happen when alert is issued.

    NOTE: Try to keep script running time as short as possible.

    voice_alert.sh:

    --------------cut here---------------------------------------------------------
    #!/bin/bash
    # //audio file name (prefix) played on alert
    # //can be:'my' = ansver to my cq,
    # // 'loc' = new main grid,
    # // 'text'= text found from monitor line
    # // 'call'= text fits to the callsign
    # // create files you want to be played
    # scirpt is seeking names with '.wav' suffix! Change if needed
    #select audio card(if needed) and play alert message

    aplay ~/.config/cqrlog/voice_keyer/$1.wav

    --------------cut here---------------------------------------------------------

    Starting qso from wsjtx-monitor

    You can start Wsjt-x qso by double click a CQ-monitor’s line. Wsjt-x will move to callers QRG and initiate TX.


    This requires Wsjt-x's Configuration/Settings/Reporting to have at leastAccept UDP requests” selected.
    Setting also “ Accepted UDP request restores window” will return focus from CQ-monitor back to wsjt-x main window.

    A line when someone has answered to you (your call is first at Wsjt-x data line) has ”=” sign just at start of callsign and locator is marked *QSO if line has reports or 73.
    Clicking that line again does not continue qso.
    Wsjt-x remote does not allow this kind of command preventing automated qsos. So at this case you have to go to Wsjt-x screen and initiate report sending by yourself. Or set “auto seg” at wsjt-x/FT8.

    Either qso is started from CQ-monitor, or Wsjt-x screen itself, the opponent callsign is added right away to New QSO's callsign field. This way you can see right away if you have had qso with this station on other modes/bands and also all other information like DXCC status, QRZ/HamQTH information etc.

    Logging qso to cqrlog

    When you either press “Log QSO” at wsjt-x main window, or get it open automatic when sending 73 by checking Wsjt-x's Configuration/Settings/Reporting/Prompt me to log qso ,you will have wsjt-x's logging form open.
    Check it’s information, add power and remarks if needed. After finishing with it press it’s OK-buttonThen information is transferred to cqrlog.

    NOTE: DO NOT press cqrlog/NewQSO/Save QSO [enter] - button to save qso!

    If you have enabled auto search from QRZ.com/HamQth.com in cqrlog's preferences all information is fetched during your first transmit (report sending period).
    You may alter that information in NewQSO form and it is saved along with wsjt-x logging information.

    In case that fetched data has same, but longer locator than wsjt-x qso data has the longer is logged to cqrlog.
    I.E wsjt-x data gives KP01, but QRZ.com KP01TN, the longer (more complete) is logged.
    If locators differ wsjt-x data is used as it might be a portable or other special qth.

    Starting fldigi and wsjt-x via cqrlog

    You can set preferences so that cqrlog will start fldigi and/or wsjt-x programs for you when you enter remote mode. This is very handy, but doing that has also one risk.
    When fldigi or wsjt-x has been started as a child process of cqrlog they will die at the moment cqrlog crashes for some reason.
    If you start them manually as processes of their own and then activate remote mode from cqrlog they keep on running if cqrlog dies. You can finish your ongoing qso, start cqrlog again, set remote mode on and then log the qso in normal manner.
